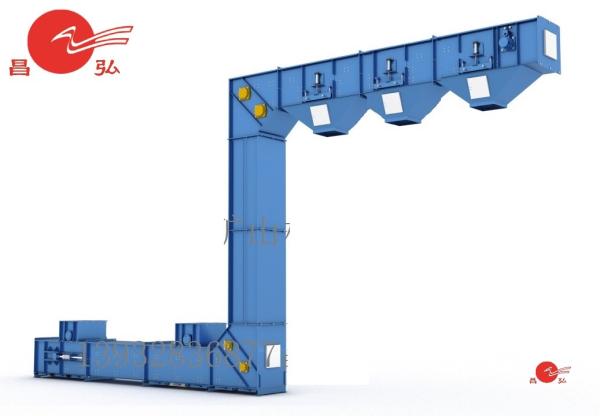

Heavy Duty 35L Z Type Bucket Elevator Conveyor For Granular Materials
Because every bucket application is unique,we offers a broad series of industrial elevator designs like Z type bucket elevator calculations, C type bucket elevator calculations etc. Selection of the proper type of bucket elevator calculations depends largely on the capacity requirements and the characteristics of the material to be handled; which are depend upon customer's requirement too.
Application
1) Chemical industry: bentonite,burnt lime,plastic granule.
2) Food industry: nut,sugar, rice,grain,flour,snacks.
3) Metallurgy, Mine industry: metal powder,screw.
4) Fertilizer industry: all kinds of fertilizer.
5) Waste treatment: cat sand,active carbon.
6) Medicine industry:all kinds of medicine.

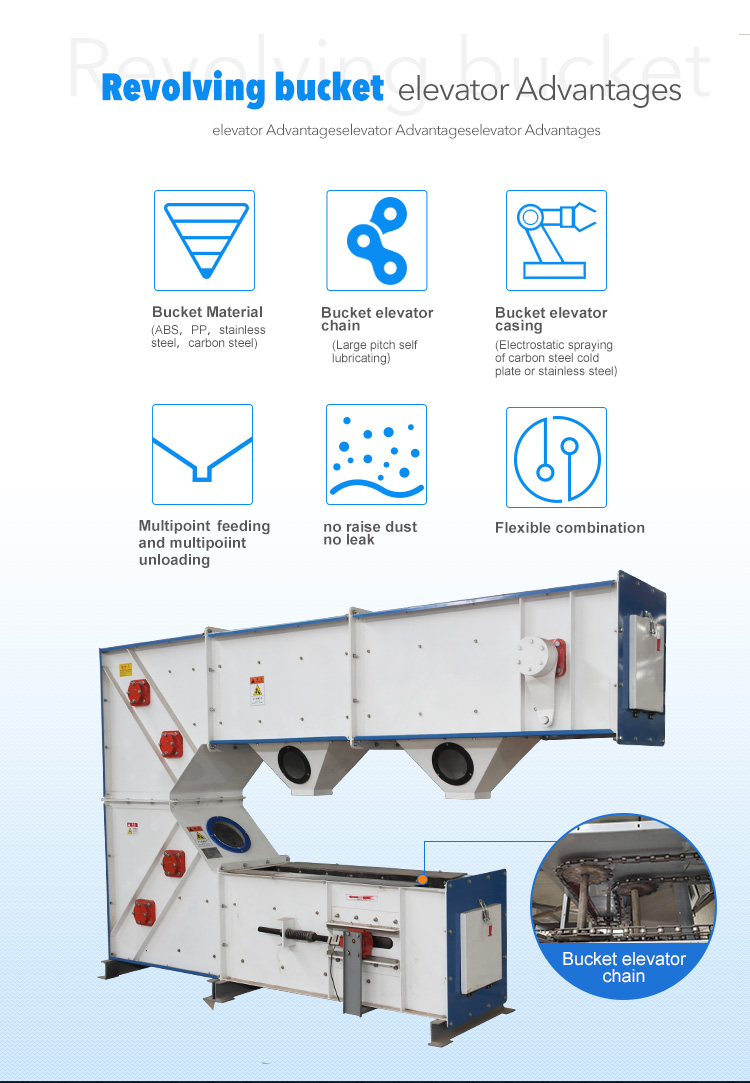

Advantages
A wide selection of replacement buckets is available.(stainless steel,PP,ABS,carbon steel)
· Easy installation and operate
· Energy saving
· The material is zero broken
· Heavy duty motor mount
· Adjustable chain
· Multipoint feeding and multipoiint unloading
· no raise dust,no leak
· Smooth running&quiet
| Sizing Table |
| | CHZD-3 | CHZD-6 | CHZD-10 | CHZD-15 | CHZD-20 | CHZD-25 | CHZD-30 | CHZD-35 |
| Transmit Mass | 100% | m3/h | 6 | 15 | 22 | 30 | 45 | 56 | 68 | 80 |
| 75% | 4.5 | 11 | 16.5 | 22.5 | 33.5 | 42 | 51 | 60 |
| Bucket | Volume | L | 3 | 6 | 10 | 15 | 20 | 25 | 30 | 35 |
| Width | mm | 370 | 470 | 870 | 500 | 560 | 690 | 815 | 940 |
| Distance | mm | 228.6 | 330 |
| Chain | QTY | -- | 2 |
| Pitch | mm | 38.1 | 66 |
| Single chain break loading(KN) minimum | 37.6 | 90 |
| Chain Wheel | Teeth QTY | -- | 26 | 22 |
| Pitch cercle diameter | mm | 316.09 | 463.76 |
| Bucket running speed | m/s | ≤0.3 | ≤0.25 |
| Transmission shaft revolution | r/min | ≤0.3 |
| Max elevating height | m | ≤45 |
| Max horizontal transport distance | m | ≤100 |
| Total Power | KW | 0.75-22 | 1.1-22 | 2.2-22 | 5.5-22 | 5.5-30 |
| Bucket Specification Size |
| Item | Width (mm) | Volume (L) | Size | CH3-10 Drawing |
| a | h | d(H12) | j |
|
| CH3 | 370 | 3 | 235 | 120 | Φ13 | 20 |
| CH6 | 470 | 6 |
| CH10 | 870 | 10 |
| | CH15-35 Drawing |
| CH15 | 500 | 15 | 340 | 195 | Φ12 | 45 |
|
| CH20 | 560 | 20 |
| CH25 | 690 | 25 |
| CH30 | 815 | 30 |
| CH35 | 940 | 35 |
